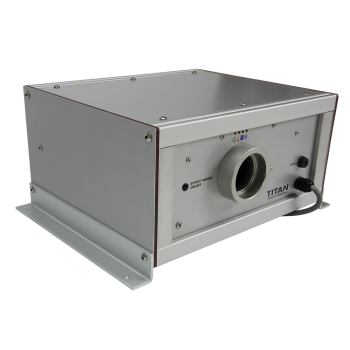

Titan

Titan

High output fibre optic lightsource suitable for commercial projects

Product Code: TTN Categories: , Tags: , ,

A breakthrough in lighting technology and an ultra versatile illumination device, the Titan opens up enormous design possibilities for lighting projects. Drawing on the extensive engineering capabilities of Digilin, the Titan uses a revolutionary optical lens design to deliver massive light output into small fibre bundles for super bright fibre cables.

Designed and manufactured in Australia, the Titan is suitable for creative lighting projects where performance and lumen delivery are critical.

Clear
Datasheet

Specifications

Power 30W 60W 75W 90W
Optical Port Lumens 3460 6930 8080 9240
LED Colour3000K, 4000K, 5000K
LampMulti-chip LED Array
Effect6 Colour Wheel, Colour & Scintillation Wheel, Dual Colour Wheel, Star Scintillation Wheel, Static
ControlDALI, DMX, None, Remote Switch, Toggle Switch
Fibre Capacity1000 x 0.75mm PMMA or equivalent
PerformanceL90(10K) > 60,500hrs
Input Voltage220-240VAC
Thermal ManagmentHigh Performance Liquid Cooling System
Protection2A Fuse
Build MaterialAluminium Composite Panel
DMX ConnectivityRJ45 (CAT5)
Finish Colour
IP RatingIP20
MountingSurface Mount

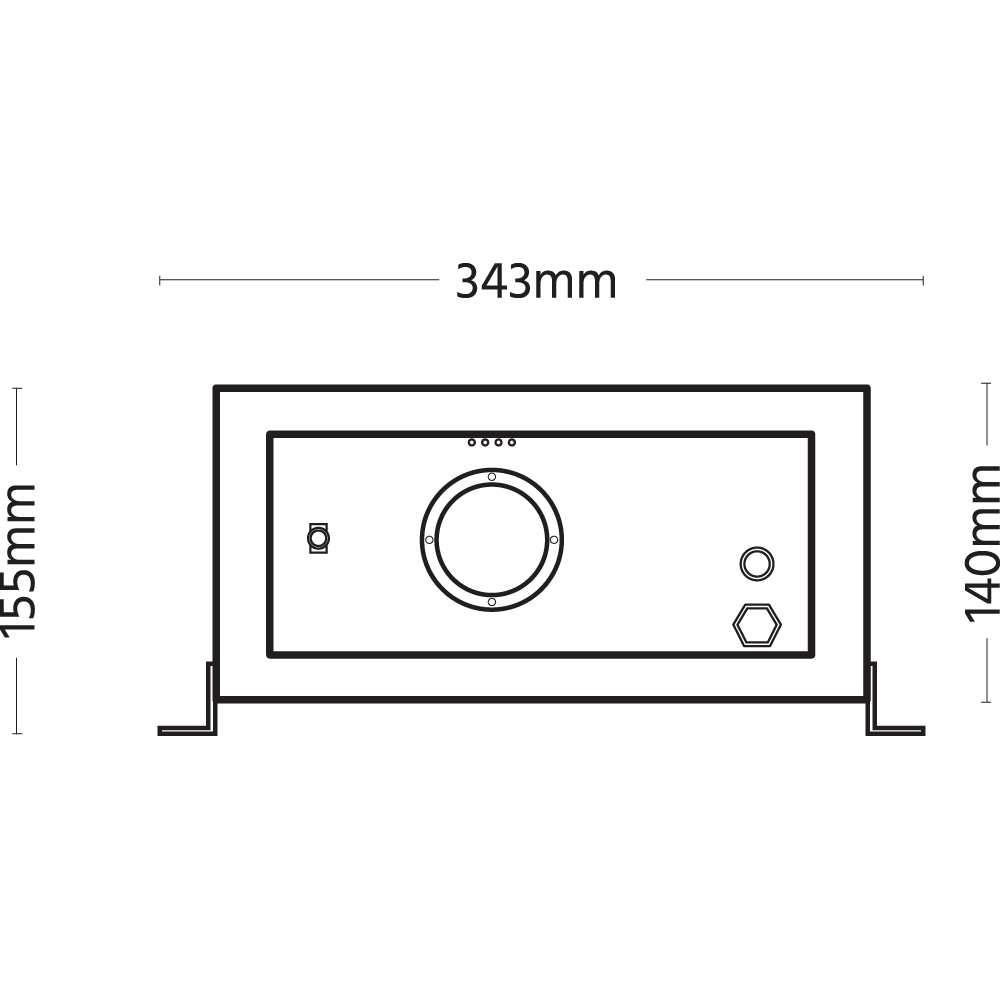

Depth263mm
Height156mm
Width343mm
Weight4.5kg
