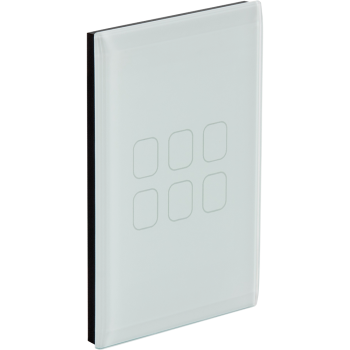

PosiTouch

PosiTouch

Full DALI control features from a simple wall panel

Product Code: CTLDAL-PST Categories: , , Tags: , ,

The PosiTouch is a lighting control system that provides users with full DALI control of multiple lighting fixtures through a stylish wall-mounted panel. Following recent changes, the device now supports DT8 tuneable white commands. A single device is capable of issuing electronic commands to lighting fixtures individually or in groups, allowing them to be set to certain scenes, turned on/off and dimmed up/down. Designed under the premise that advanced functionality is only as useful as it is usable, Digilin developed the touch sensitive controller to be as intuitive and user-friendly as possible.

While most other controllers require a third-party programmer or specialty programming knowledge, the PosiTouch can be pre-programmed by Digilin before being sent to site for ‘plug and play’ installation, or user-configured via USB connection and simple software. Although the controller is easy to use, it is fully featured and extremely versatile. Each of the 6 buttons is capable of initiating DALI commands through long-press, short press and tap-and-release inputs.

Clear
Datasheet

Specifications

ControlDALI, DT8
Control TypeCustom Programmed, Standard, Variable White
Finish Colour,
Operation ViaLong Press, Release, Short Press
MountingWall Plate
Build MaterialPolymer
Max Dimming Level100%
Min Dimming Level0%
Input VoltageDALI Bus
IP RatingIP20
Height116mm
Width75mm
Depth36mm
Weight30g
ProgrammingVia Supplied Software (Micro USB Connection)
