MicroFlex

MicroFlex

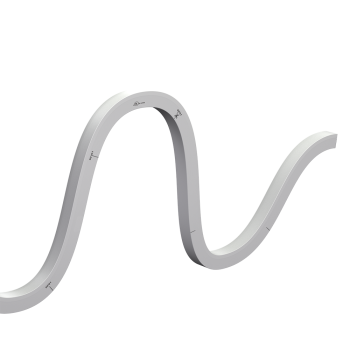

Flexible, durable micro size linear for creative applications

Product Code: MFF/MFS Categories: , , Tags: ,

MicroFlex breaks through the normal design limitations of linear systems by forming curves and allowing light to become art. Designed for decorative applications where a refined finish is critical, MicroFlex is also incredibly durable with an IP67 rating. MicroFlex provides limitless possibilities for creative designs. Please contact Digilin’s sales team for advice regarding connection options.

Datasheet

Specifications

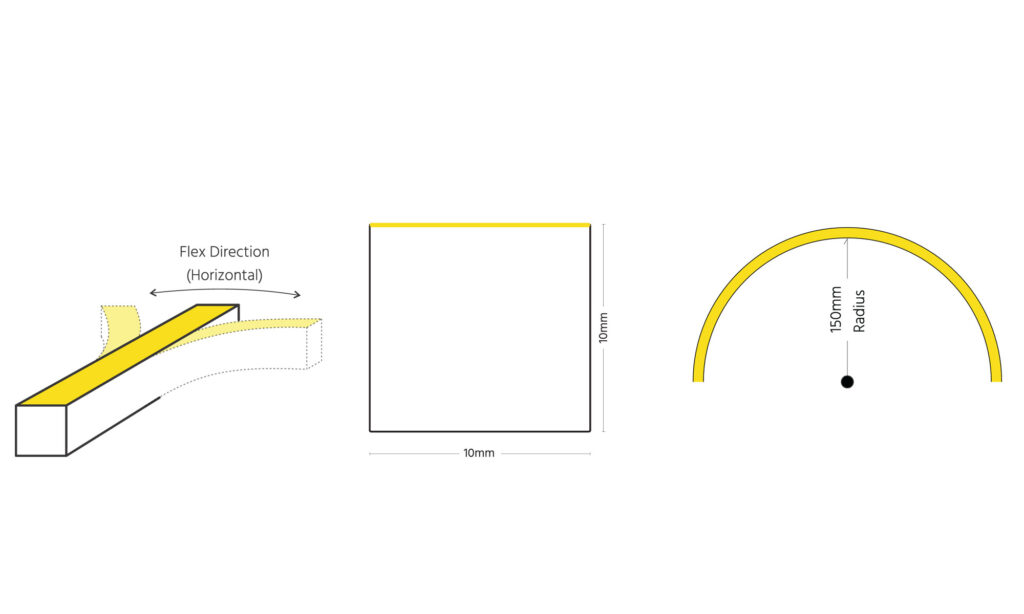

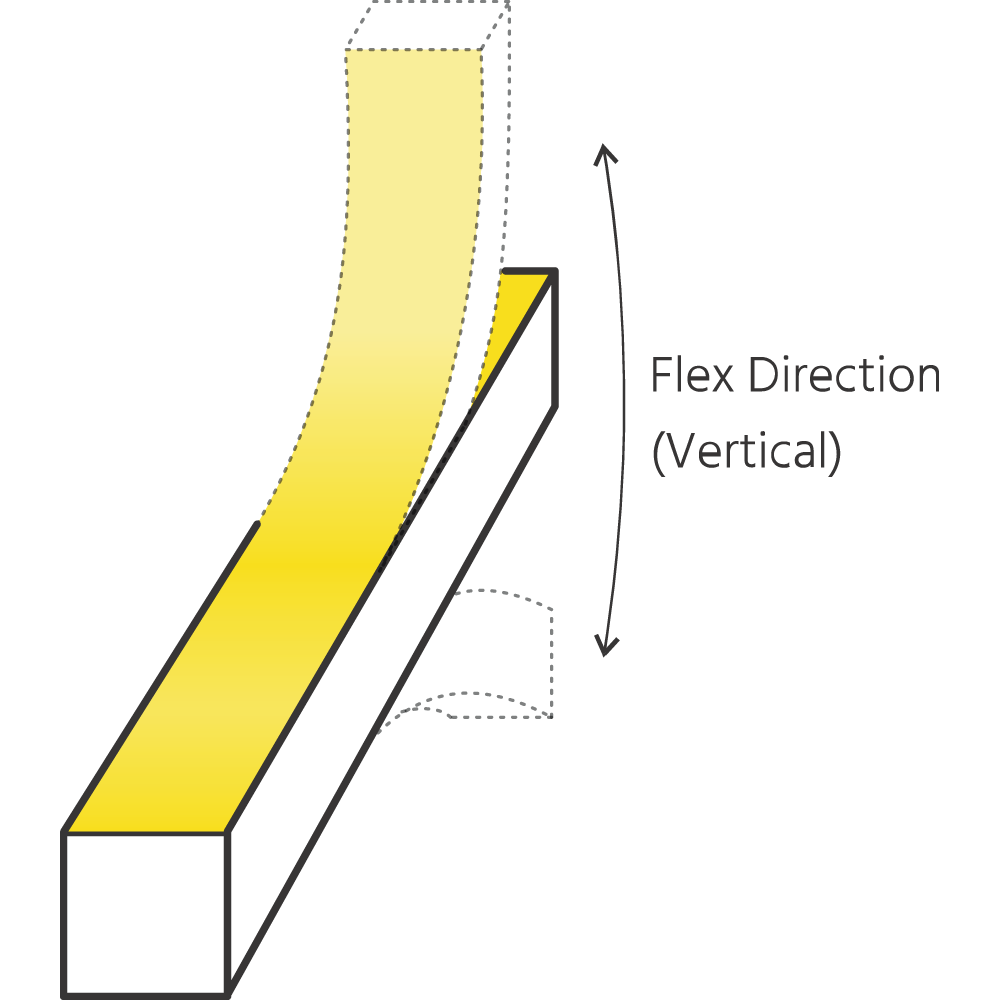

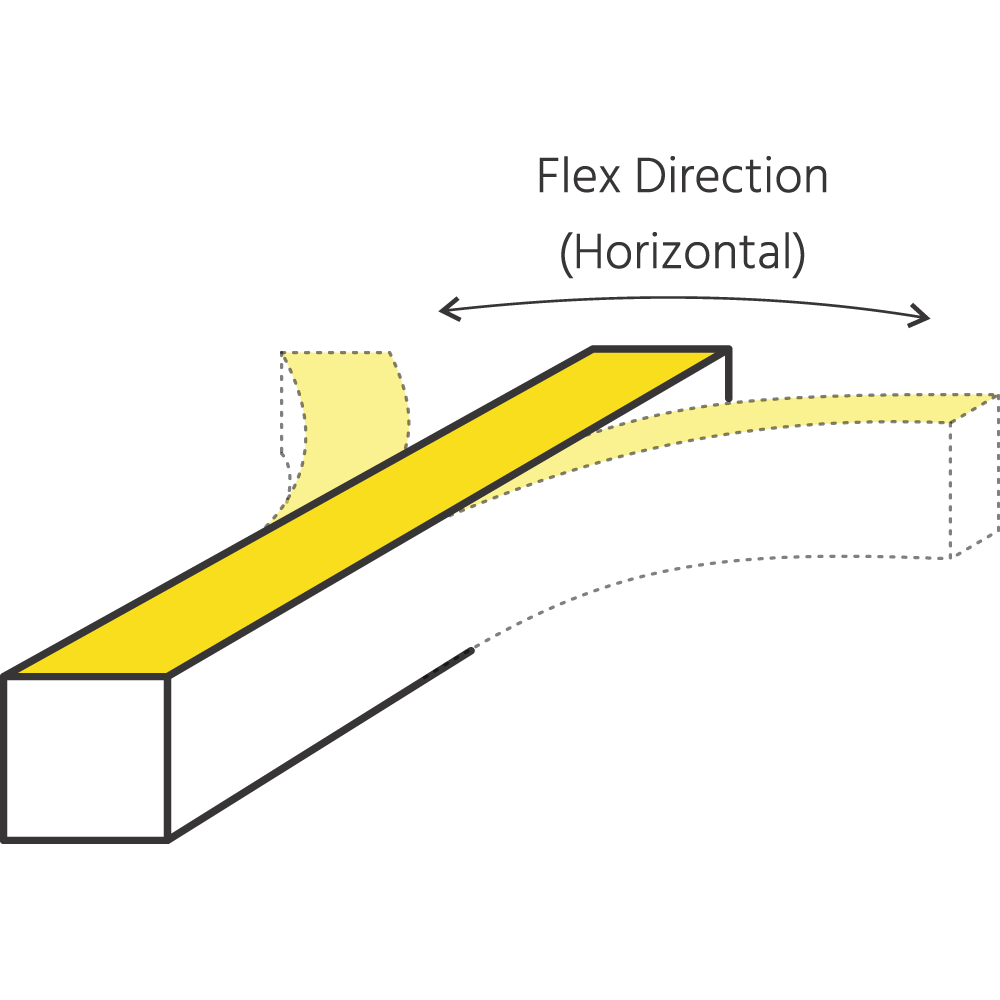

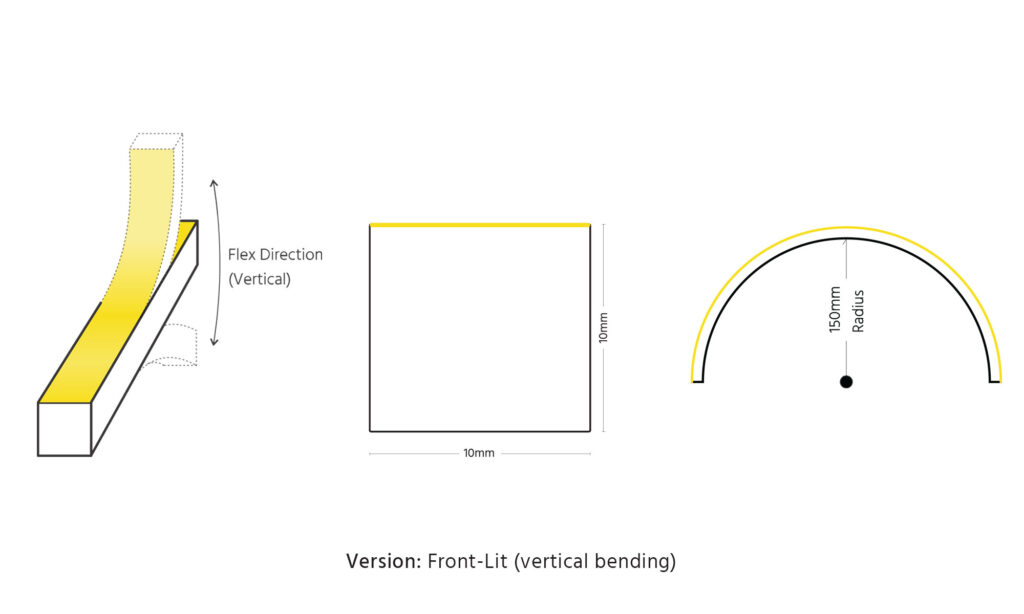

Illumination Type Front-lit, Side-lit
LED Colour White
CCT/Wavelength 2700K, 3000K, 4000K
LED Lumens 180lm/m
Power 4.5W/m
Voltage 24VDC
IP Rating IP67
Operating Temperature -20 to 45°C
Beam Angle 120°
Material Silicone
Module Length ~83.3mm
Minimum Bend Radius 100mm
Maximum Continuous Feed 15m Single, 30m Dual

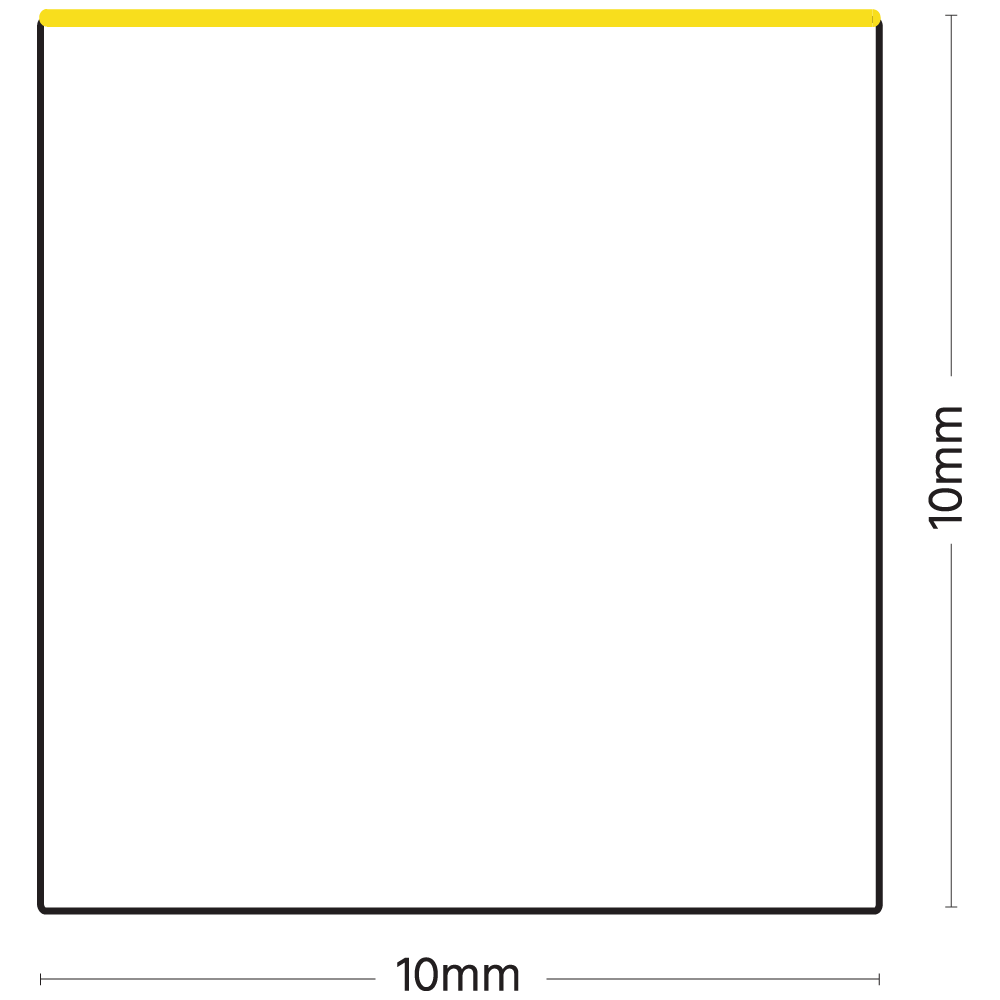

Width 10mm
Height 10mm
