Hardy stainless steel marker light

Product Code: LNK Categories: , , Tags: , , ,

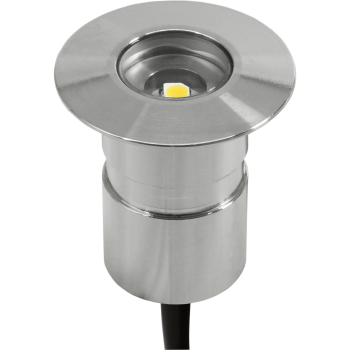

Commonly used for decorative delineation of spaces, and way-finding, this versatile miniature fixture is perfect for low output applications such as stairwells, paths and deck markers. Machined from 316 marine grade stainless steel with a tempered glass window. Suitable for ground, wall and ceiling installation the Link is an ultra efficient, stylish and reliable LED marker light.





Clear
Datasheet

Specifications

Colour 2700K 3000K 4000K Red Green Blue
LED Lumens 8.3lm 8.6lm 9.0lm 3.6lm 9.4lm 3.2lm
Luminaire Power 0.12-0.24W
Drive Current 20mA
Forward Voltage 6-12VDC
Performance L70 (10k) >59,000hrs
Beam OptionClear, Frost
Cable Length1m, 5m, 10m, 15m, 20m
Finish Colour
ControlDim
Typical CRI90
MountingRecessed
Build MaterialMachined 316 Stainless Steel
IP RatingIP67
IK RatingIK10
Trim Size25mm
Light Emitting Area14mm
Hole Cut Out15.5mm
Length28mm
Weight55g
