High output IP65 surface mount downlight

Product Code: JST Categories: , , , , Tags: , , , ,

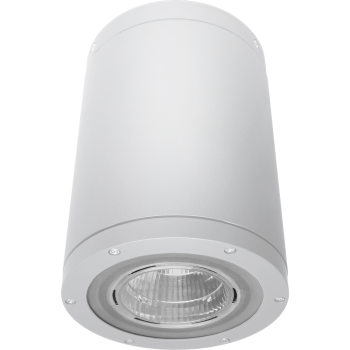

Justice is an IP65 surface mount downlight, featuring a powder-coated cast aluminium body, integral driver and extruded aluminium heatsink. The luminaire is currently available in single colour white 2700, 3000K, 4000K and 5000K, with colour change and tuneable white options now in development.

Providing up to 2500 lumens at 24W, the Justice is very efficient. Its clean cylindrical form seamlessly fits into any project and it can be easily surface mounted using simple installation connections. A variety of integral lens options bring highly efficient optics while saving critical space.

Engineered for performance and reliability like all Digilin products, Justice is a bullet-proof lighting solution for adverse conditions.

Clear
Datasheet

Specifications

Model 1000 1200 1800 2400
Colour Temperature 2700K, 3000K, 4000K, 5000K 2700K, 3000K, 4000K, 5000K 2700K, 3000K, 4000K, 5000K 2700K, 3000K, 4000K, 5000K
Delivered Lumens 968–1201lm 1243–1545lm 1741–2158lm 2359–2928lm
Luminaire Power 9.1W 12.0W 17.7W 25.7W
Connected Load 11.2W 14.7W 19.9W 27.3W
Drive Current 270mA 350mA 500mA 700mA
Forward Voltage 33.7V 34.4V 35.4V 36.8V
Typical CRI 90 (80 @5000K)
Performance L80(15k) > 90,000hrs
Beam Option18°, 35°, 60°, Wall Wash
Finish Colour, ,
ControlDALI, Mains/Phase, SDALI
Trim Size190mm
Light Emitting Area66mm
MountingSurface Mount
StyleFixed
Driver OptionsIntegral, Remote
Build MaterialCast Aluminium
IP RatingIP65
Height277mm
Weight3.8kg
