Freedom

Freedom

Premium LED downlight with high output and low glare

Product Code: FRD Categories: , , Tags: , , , ,

An outstanding commercial, retail, and theatrical downlight, using the latest technology from Digilin. Amazing efficiency and massive lumens are what you get from the Freedom LED downlight.

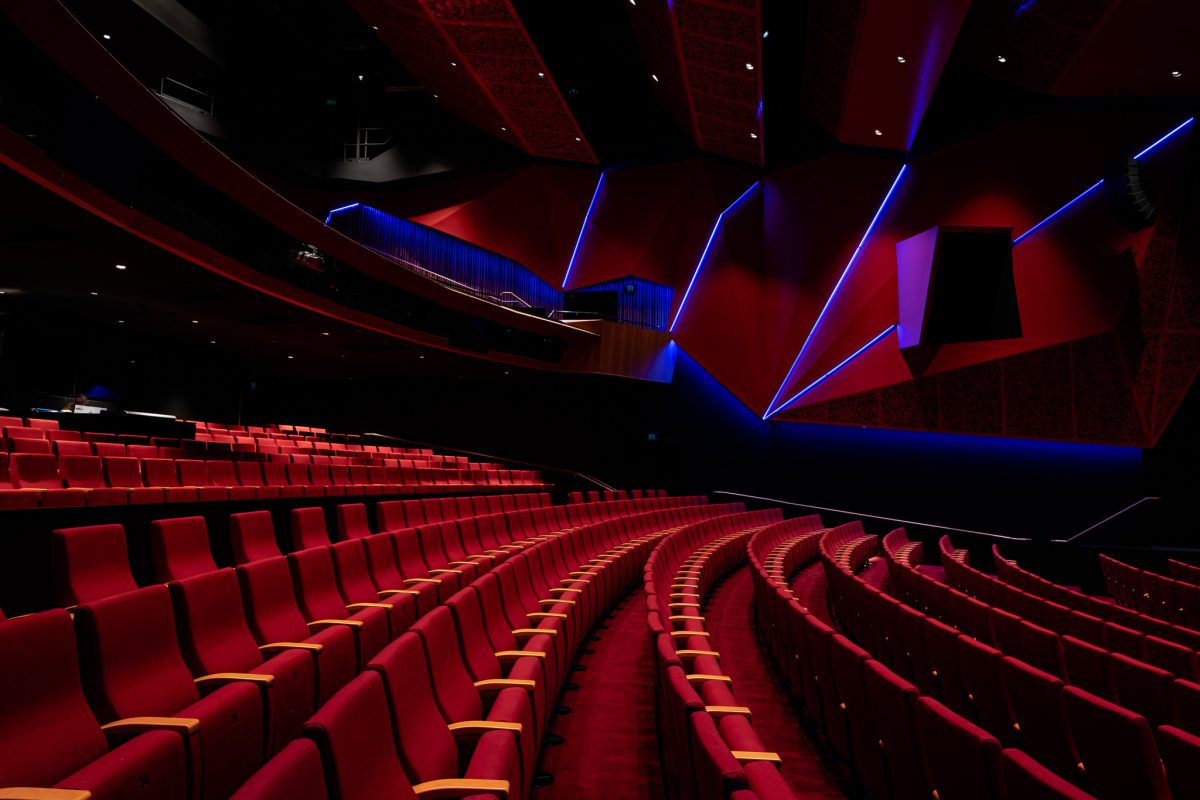

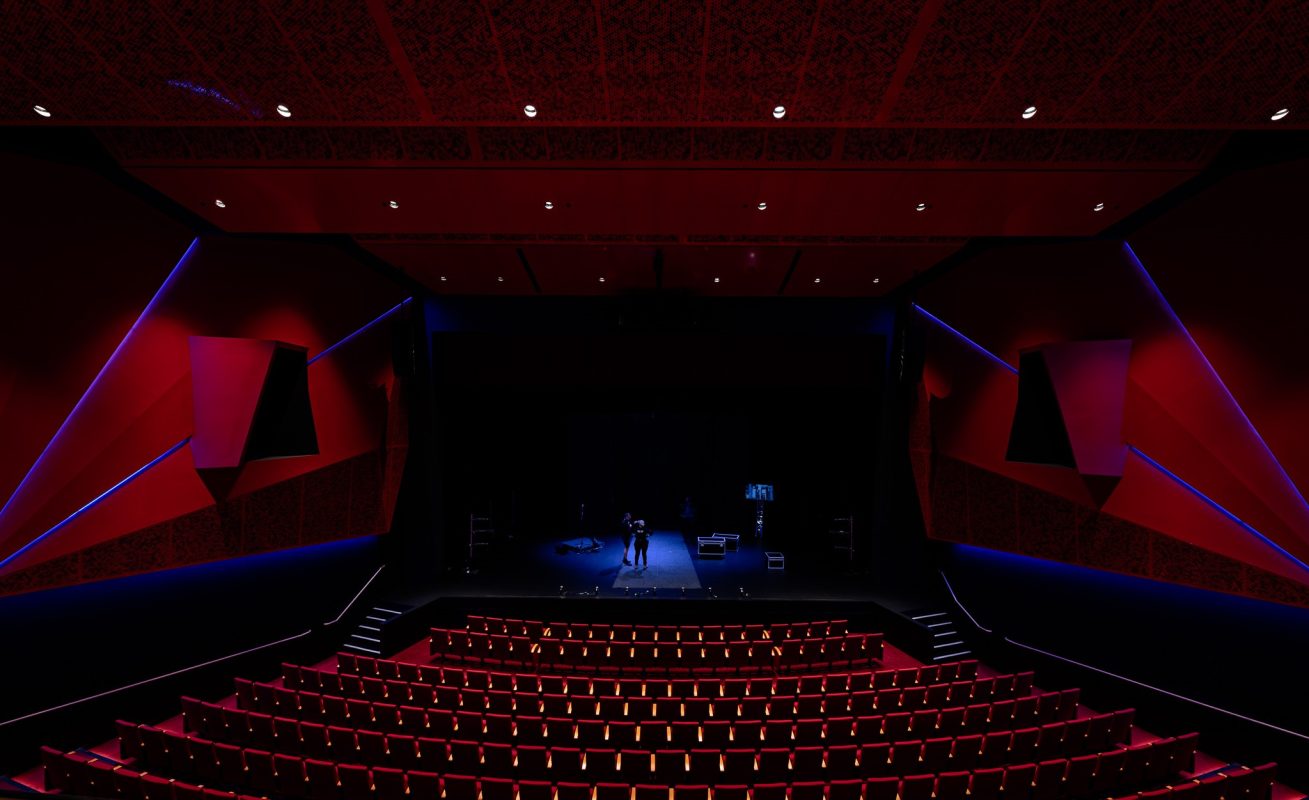

Designed for high ceiling applications such as theatres, showrooms, shopping centres and auditoriums, the Freedom LED downlight allows LED efficiency and longevity into projects requiring high light levels and reliability.

Freedom is Australian made, using premium LEDs and ultra efficient reflectors for best possible delivery of light into large spaces.

Clear
Datasheet

Specifications

Model 2000 4000 6000
Colour Temperature 2700K, 3000K, 4000K, 5700K 2700K, 3000K, 4000K, 5700K, Sunlike 3000K, Sunlike 4000K 2700K, 3000K, 4000K, 5700K
Delivered Lumens 1941-2121lm 3883-4242lm 4942-5398lm
Luminaire Power 16.6W 36.8W 50.4W
Connected Load 18.4W 40.9W 56W
Drive Current 500mA 1050mA 1400mA
Forward Voltage 33.1V 35V 36V
Typical CRI 90 90 (S40 95) 90
Performance L90(10k) > 55,000hrs
Beam Option18°, 26°, 32°, 38°, 44°, 52°, Wall Wash
Finish Colour,
ControlBluetooth, DALI, DMX, Mains/Phase, Non-Dim, SDALI
Hole Cut Out140mm
Trim Size152mm
Light Emitting Area102mm
MountingRecessed
StyleFixed
Build MaterialCast Aluminium
IP RatingIP20
Height172mm
Weight930g
