Flare

Flare

Amazing dual optics for uniform wall wash

Product Code: FLR Categories: , , Tags: , , ,

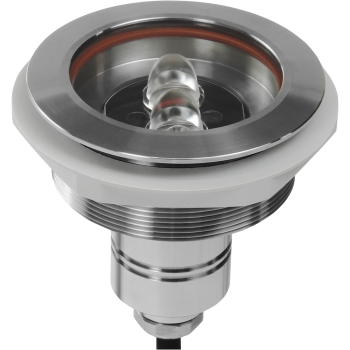

Originally designed for use on superyachts, Flare is quite unique with a dual LED and lens system to provide a wall wash light effect from a point source fixture. Manufactured from marine grade stainless steel the Flare is an incredible feat of LED and optical engineering.

Commonly used in landscaping for public spaces, Flare has an IP68 rating for harsh outdoor environments. Sturdy construction and precision assembly results in a very robust luminaire that can be used with confidence in external applications where a wall wash effect is required.

Designed and manufactured in Australia, Flare gives designers ultra wide distribution that cannot be achieved from single LED luminaires.

Clear
Datasheet

Specifications

Colour Temperature 2700K – 6000K
Delivered Lumens 232-318
Luminaire Power 3.48W
Connected Load 4.4W
Drive Current 600mA
Forward Voltage 5.6V
Beam OptionWall Wash
Finish Colour
ControlDim, Non-Dim
Typical CRI90

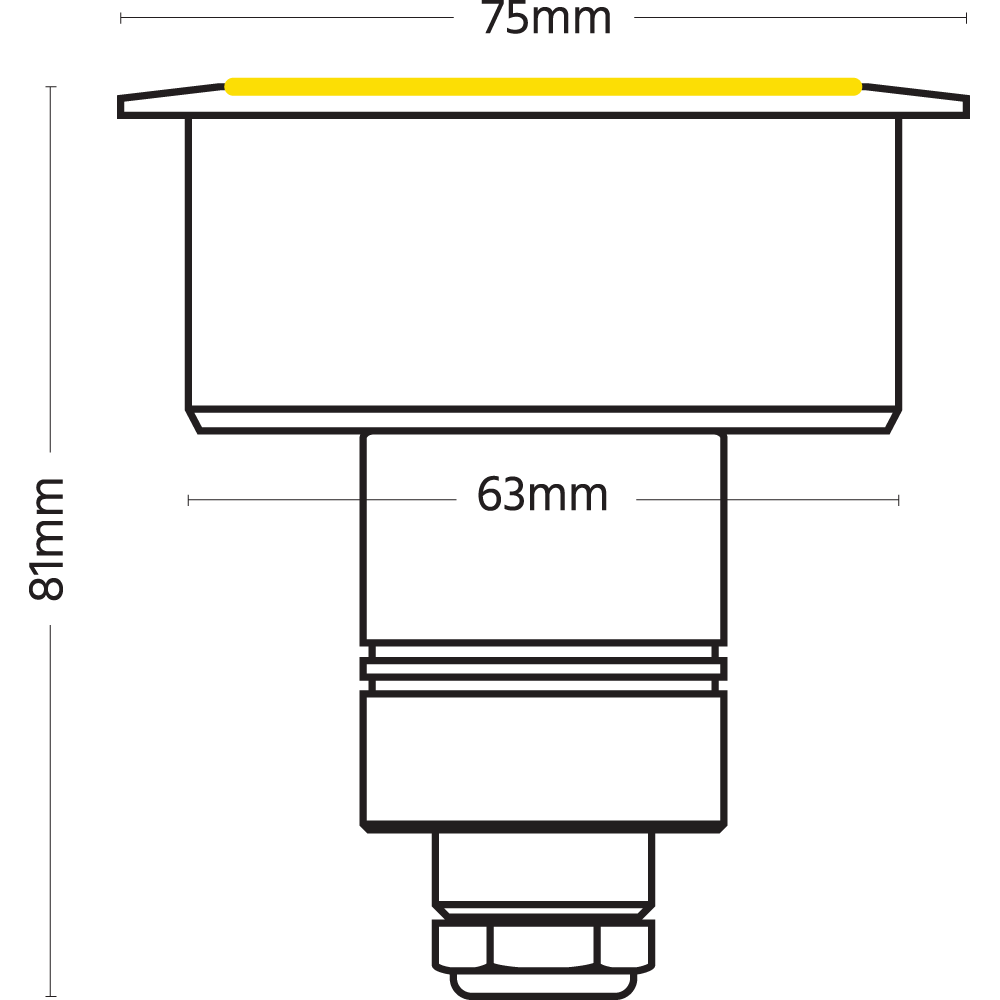

Hole Cut Out65mm

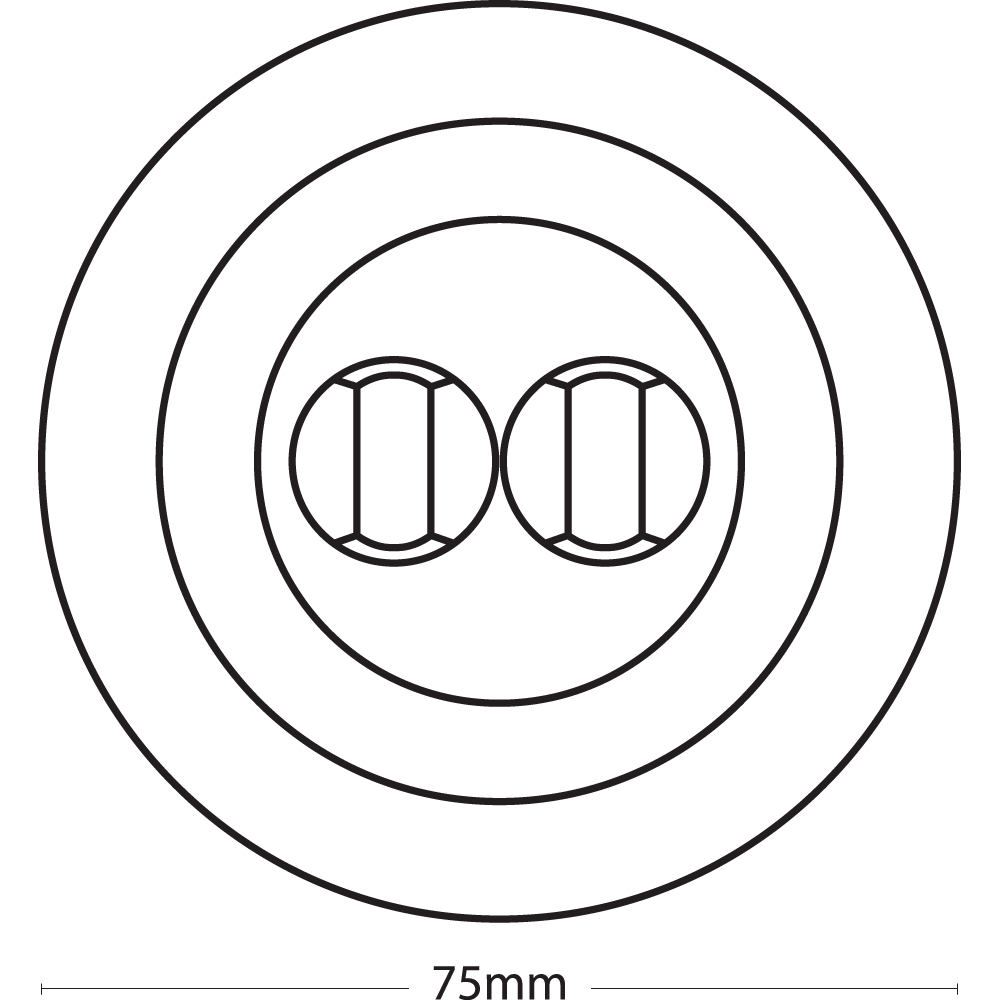

Trim Size75mm
Light Emitting Area55mm
MountingLock Ring, Recessed
Build MaterialMachined 316 Stainless Steel
PerformanceL90(8.5k) >51,400hrs
IP RatingIP68
Weight640g
Cable Length1m, 5m, 10m, 15m, 20m
