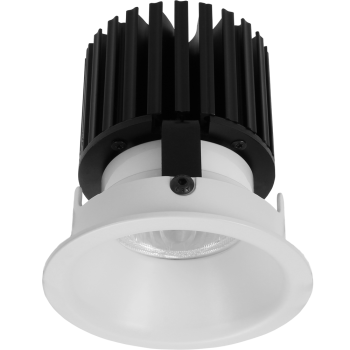

Versatile lens-based low-glare downlight

Product Code: ENV Categories: , , Tags: , , ,

Designed for high visual comfort, Envoy delivers high colour-rendering, low-glare light output using a deeply-recessed optical lens. This modern downlight is incredibly versatile and offers an extensive breadth of configurable attributes. Available in models delivering between 700-2500 lumens, CCTs in 2700K, 3000K, 4000K, 5700K, with multiple lens options while supporting all of Digilin’s control protocols, including mains, DALI, smooth DALI, DMX and Bluetooth, Envoy can be configured to suit almost any environment requiring quality light and visual comfort.

Datasheet

Specifications

Model 700 1000 1300 1800 2500
Colour Temperature 2700K-5700K 2700K-5700K 2700K-5700K 2700K-5700K 2700K-5700K
Delivered Lumens 700-766lm 946-1034lm 1270-1388lm 1785-1949lm 2378-2596lm
Luminaire Power 5.9W 8.7W 11.9W 17.5W 25.2W
Connected Load 6.6W 9.7W 13.3W 19.5W 28W
Drive Current 180mA 260mA 350mA 500mA 700mA
Forward Voltage 32.7V 33.3V 33.9V 34.8V 35.9V
Height 68mm 98mm 128mm
Weight 220g 330g 420g
CRI 90
UGR 18-21 (dependent on model and beam option)
Performance L90 >55,000hrs

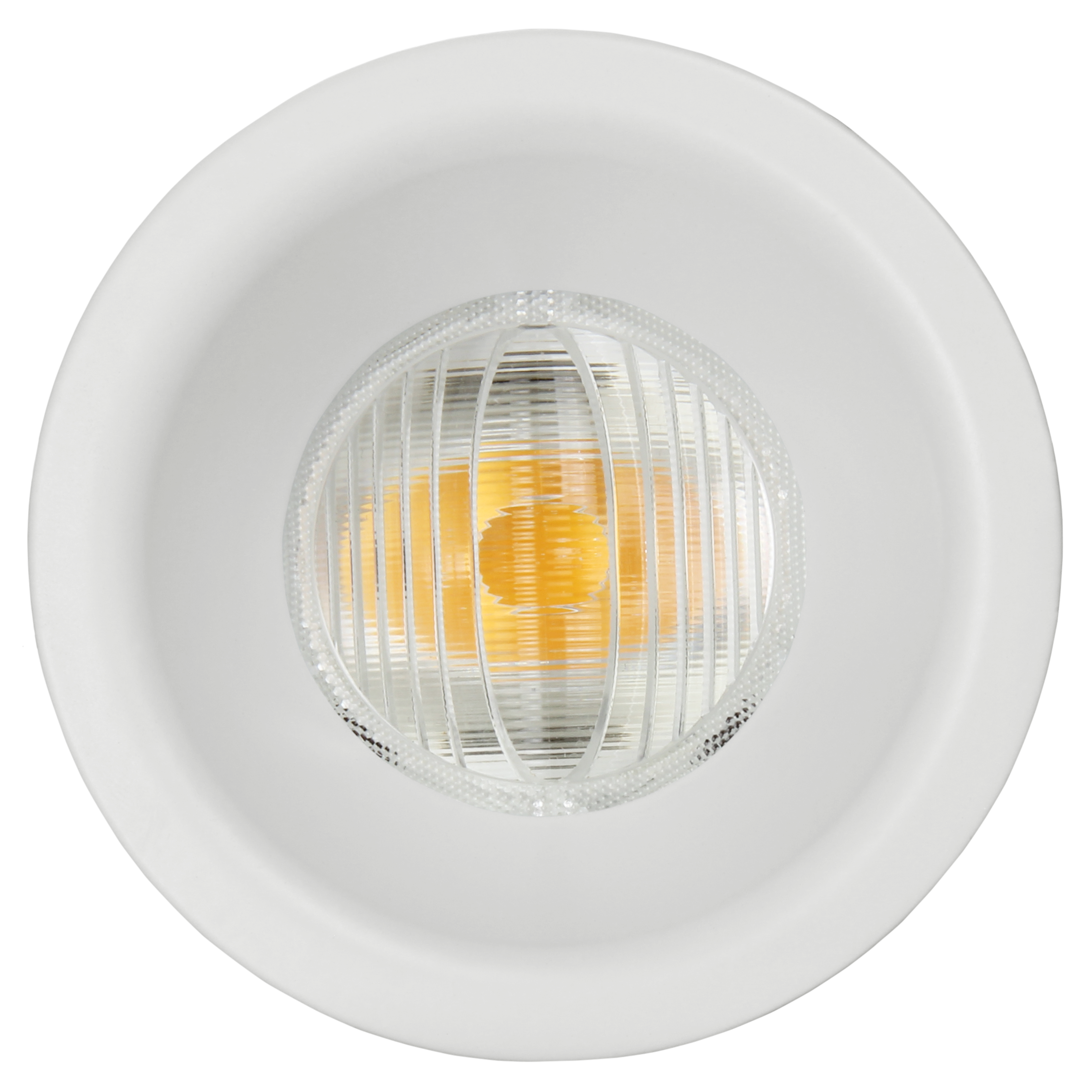

Beam Option30°x60°, 30°, 45°, 60°
Finish ColourWhite, Black, Custom
ControlBluetooth, DALI, DMX, Mains/Phase, SDALI
MountingRecessed
StyleFixed
Driver OptionsRemote
Build MaterialCast Aluminium
IP RatingIP20
Dimensions90mm (Trim), 80mm (Hole Cut Out), 45mm (Light Emitting Area)
