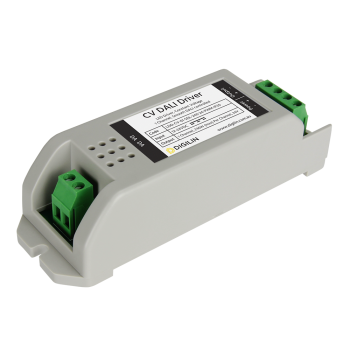

CV Smooth DALI Driver

CV Smooth DALI Driver

Precise control with a super smooth dimming curve

Product Code: LDD-CV-SDL Categories: , , , Tags: , , ,

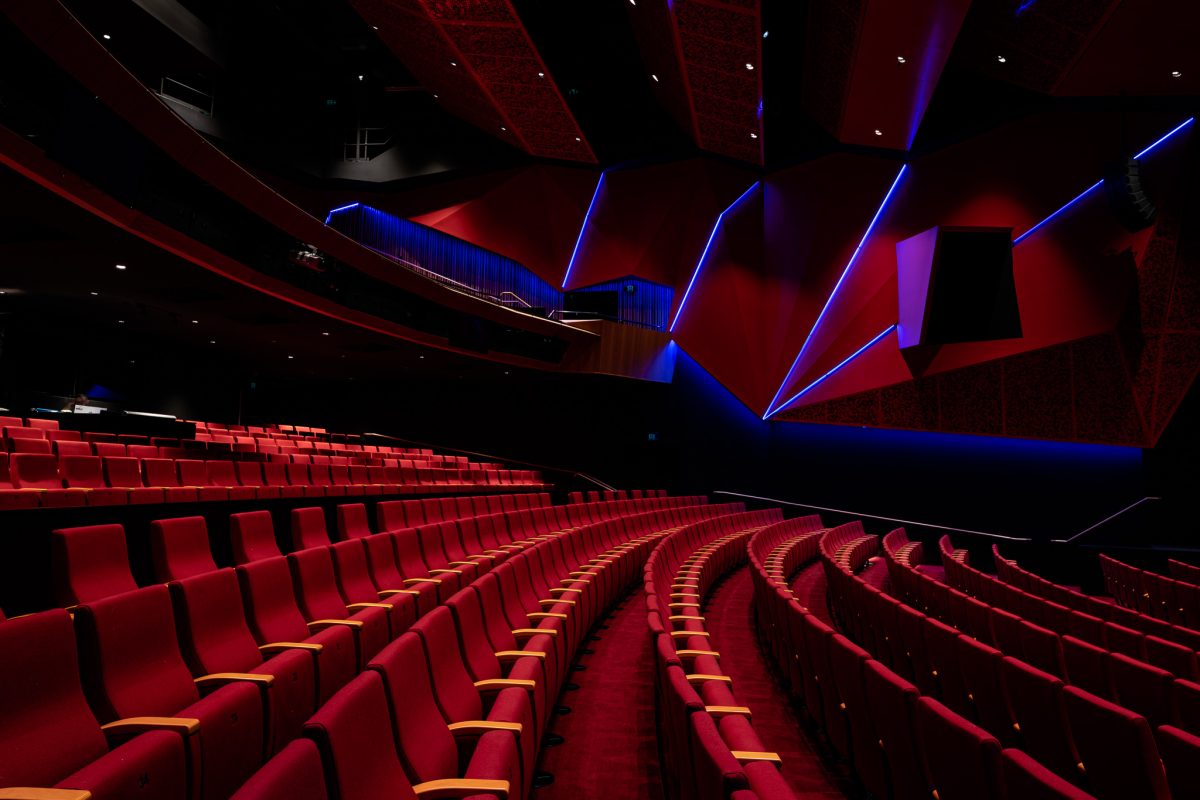

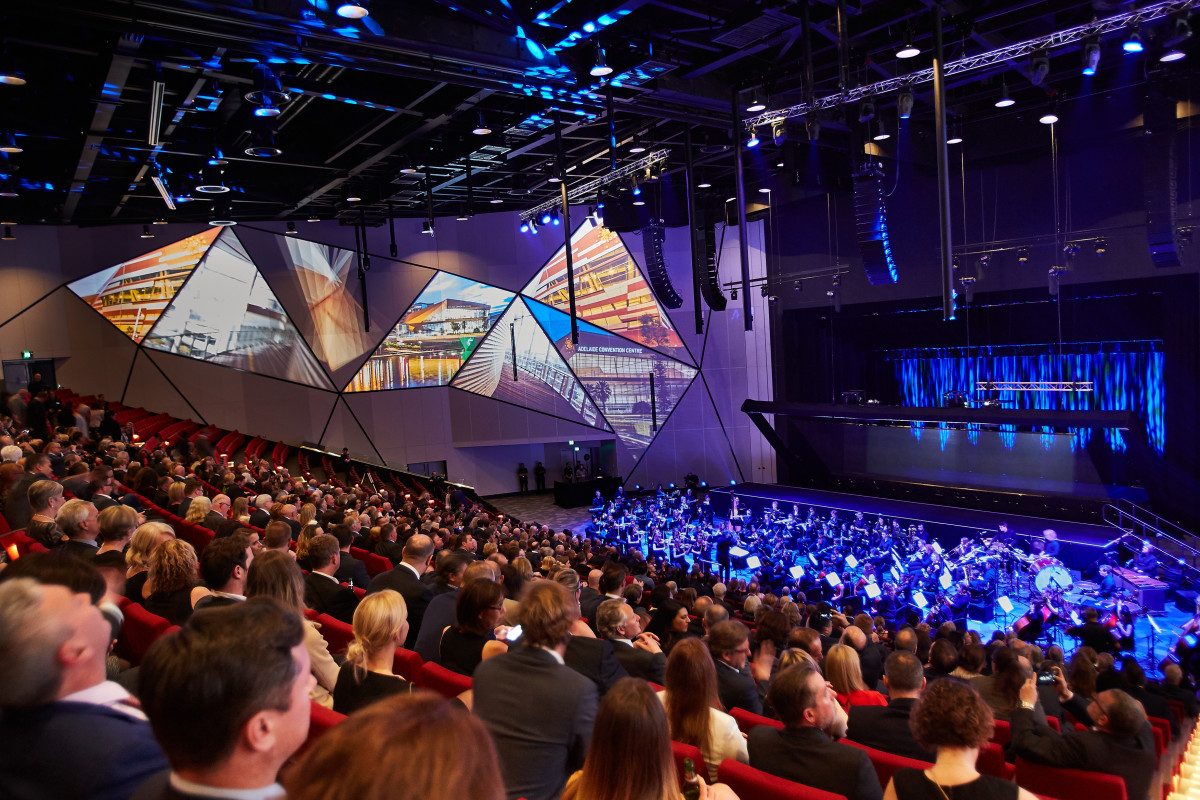

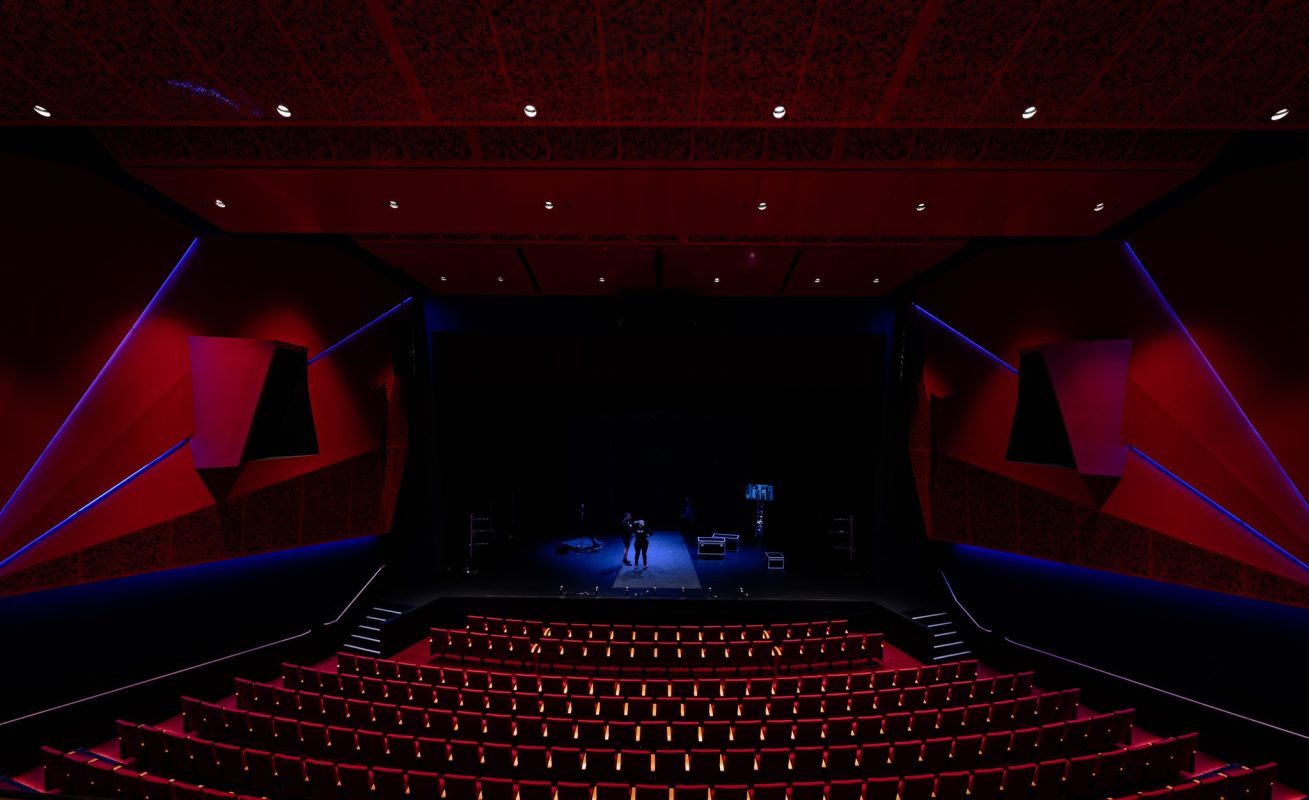

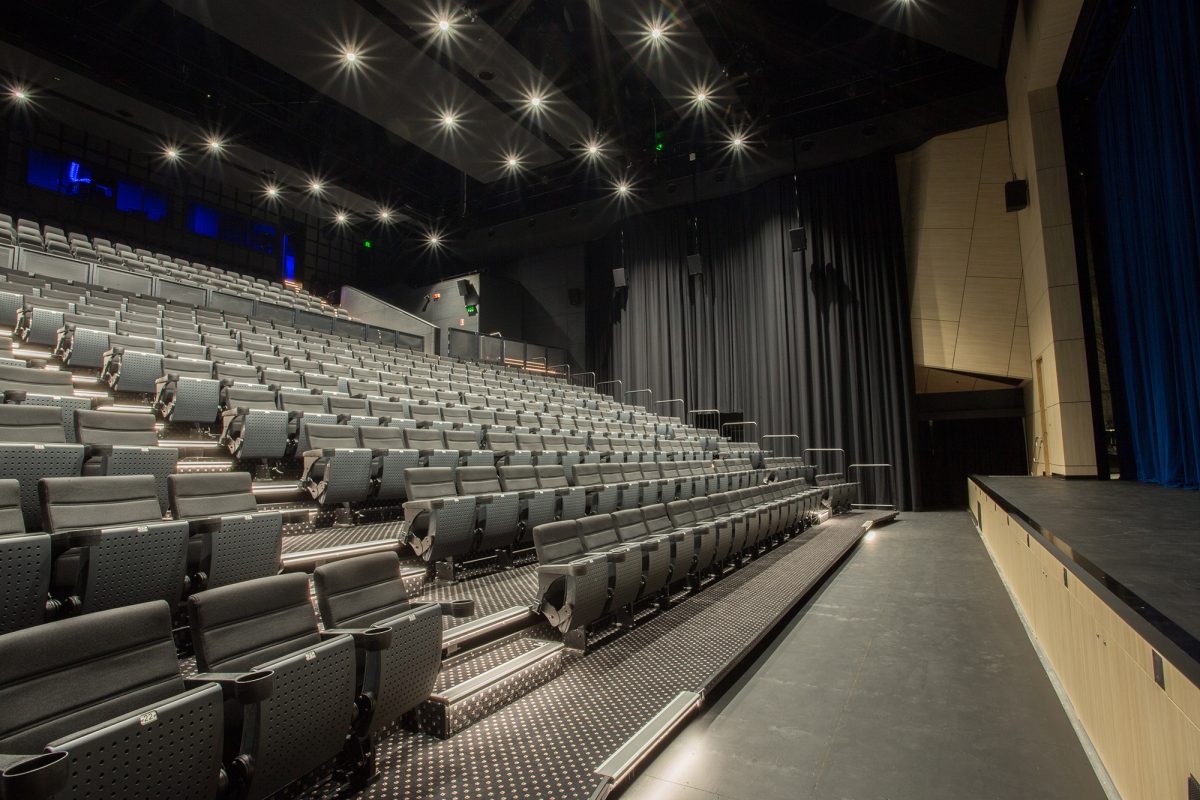

Digilin’s CV Smooth DALI Drivers enable ultra smooth dimming of LED luminaires and strips via the DALI protocol. These drivers allow for fine control at very low light levels via Digilin’s smoothed transitions software which makes transitions in light levels almost imperceptible. It is an ideal solution for integrating single or RGB colour LED strips into a DALI lighting control system and has found widespread application throughout Australia’s top performing arts theatres and entertainment centres.

Clear
Datasheet

Specifications

ControlDALI, SDALI
Control TypeSingle Colour (Dimmer), Variable White, RGB
Channels1, 2, 3
Power48W, 144W, 240W
Drive TypeConstant Voltage
Input Voltage12 – 24VDC
Output Voltage12 -24VDC
Output Current2A per Channel, 10A Per Channel
Output TypeConstant Current PWM
Max Dimming Level100%
Min Dimming Level0.009%
PWM Frequency244Hz
Protection15A
Operating Temp-20°C to +40°C
Build MaterialHigh Temp ABS
MountingDIN Mount, Direct Fix via screws, Surface Mount
IP RatingIP20
Length120.6mm
Width39mm
Height32mm
Weight65g
Device clearance30mm
CoolingFree air convection
Class I/II/IIIIII
