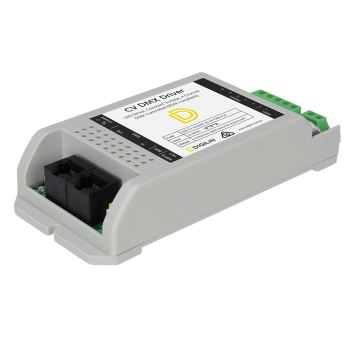

CV DMX Driver

CV DMX Driver

RDM enabled DMX receiver with PWM output

Product Code: LDD-CV-RDM Categories: , , , Tags: , , , , , , ,

The LDD series is a DMX receiver with multiple channels of PWM driven outputs for controlling constant voltage LED systems. The PWM outputs make use of Digilin’s special smoothed PWM transitions software making variations in light output almost imperceptible even at low levels.

In addition to DMX input, the LDD series also has a connector for direct interfacing to Digilin’s ColourTheme controllers, making a complete system simple to install and control. The LDD series is designed for world’s best dimming outcomes and includes multiple RDM selectable personalities, enabling selection of PWM frequency and smoothing time.

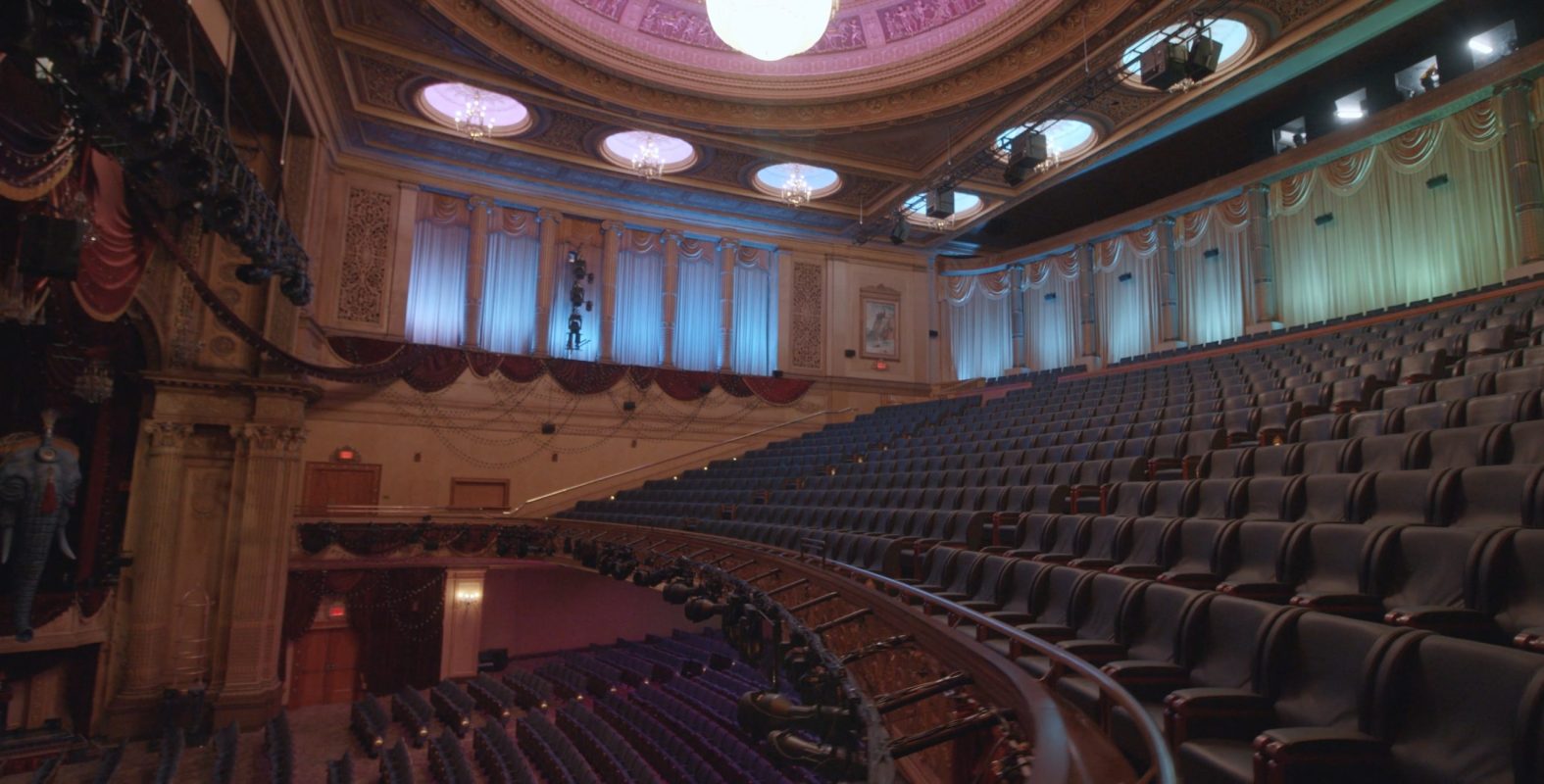

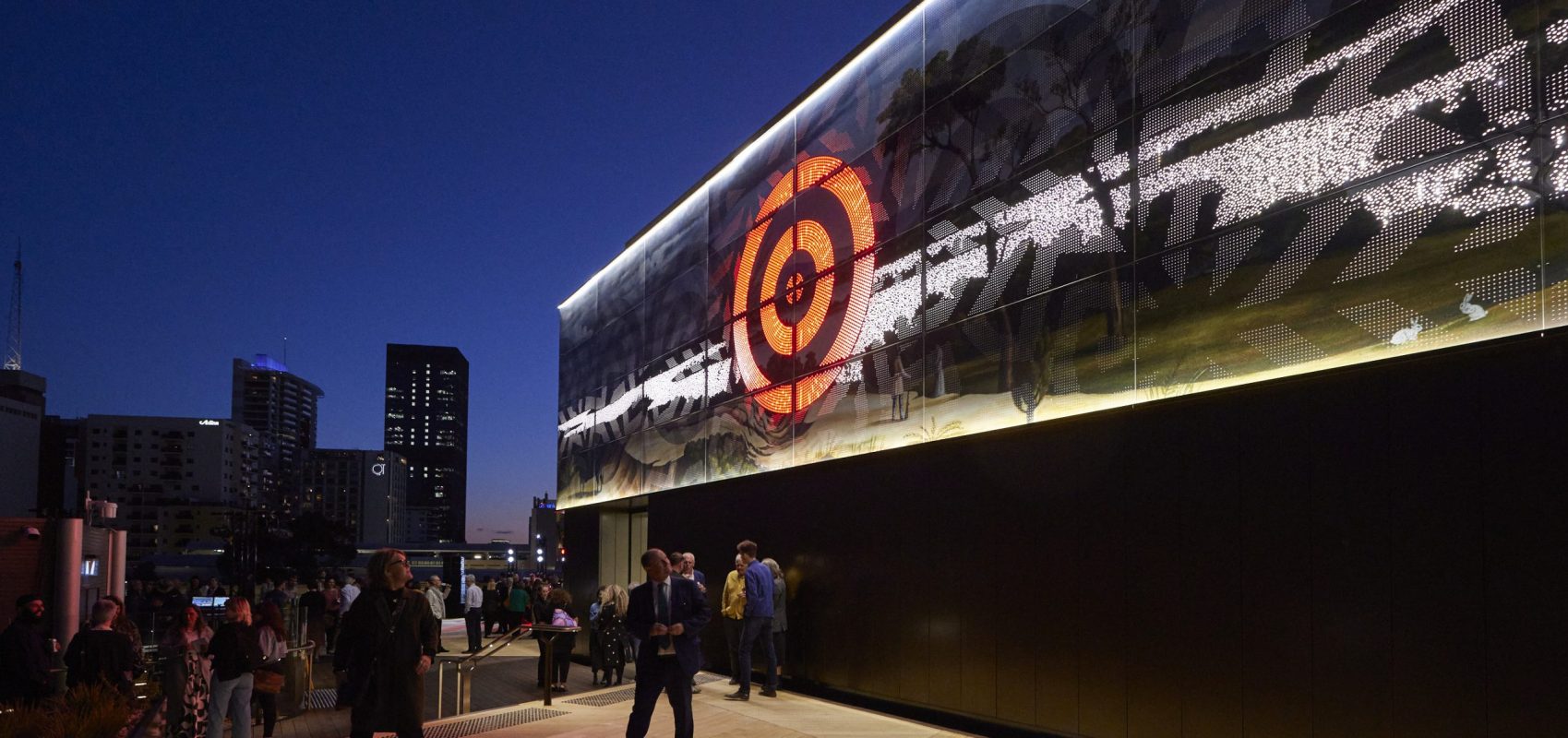

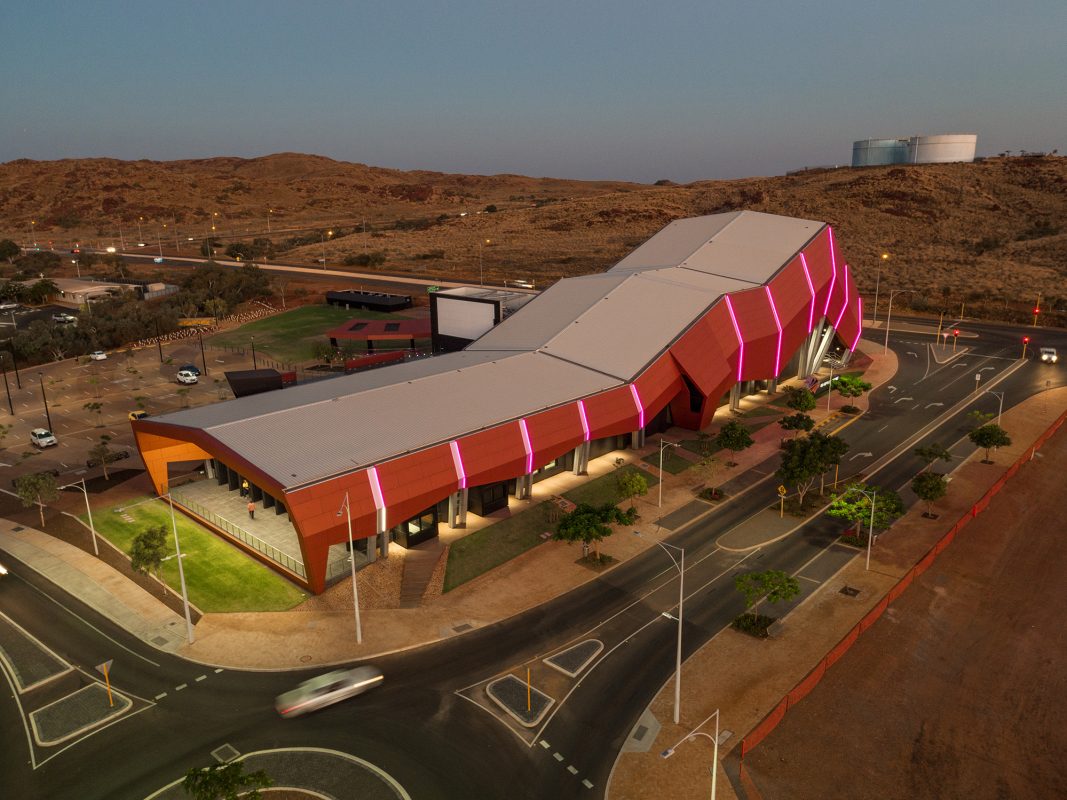

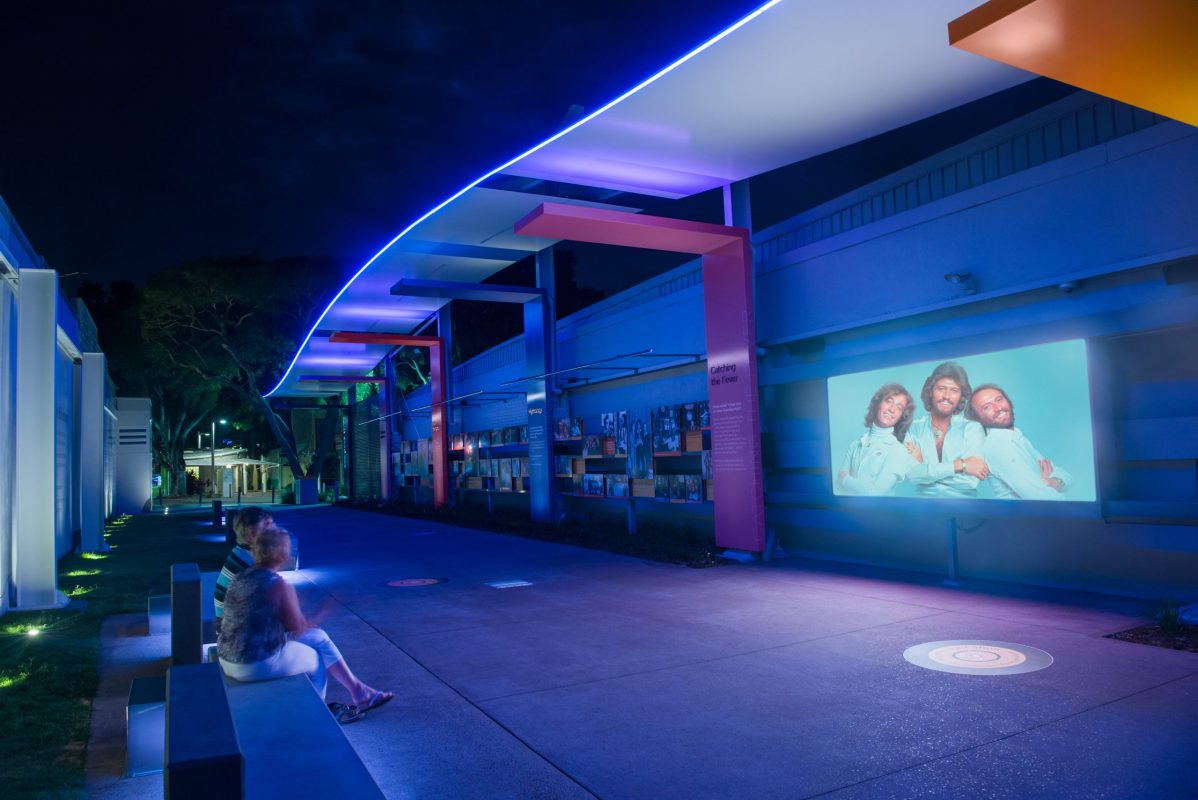

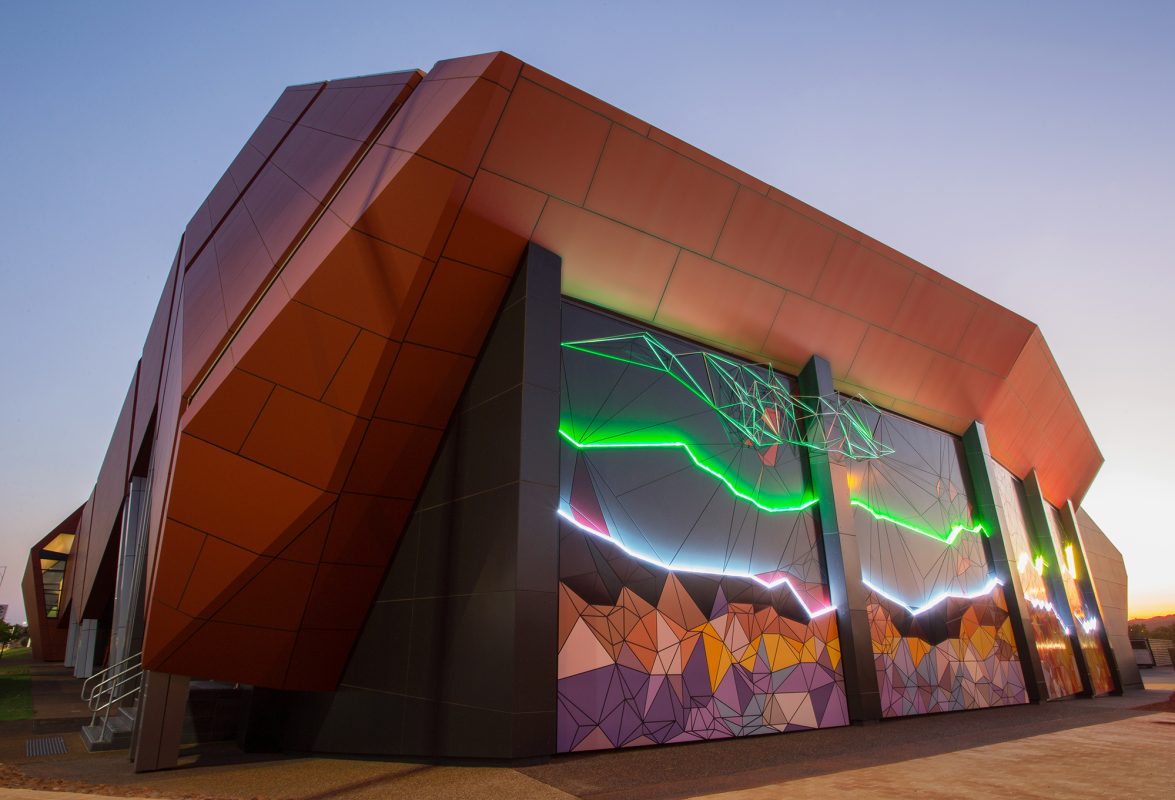

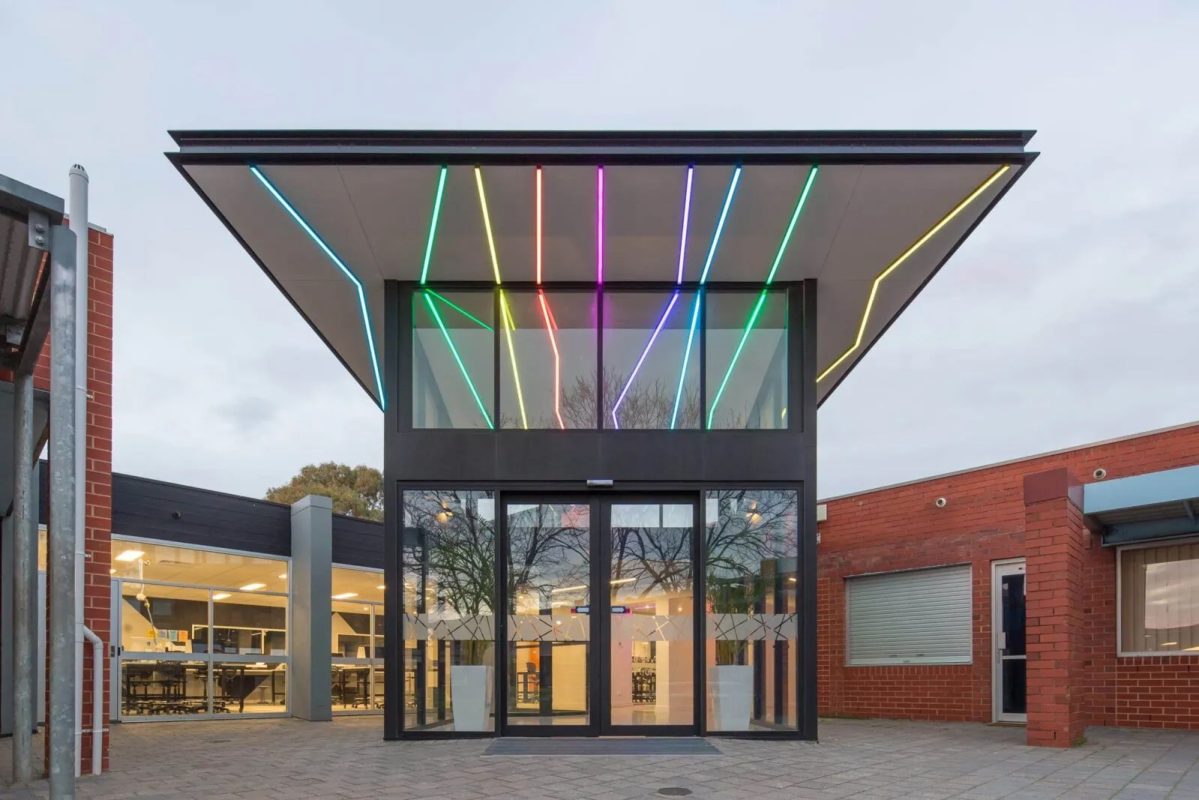

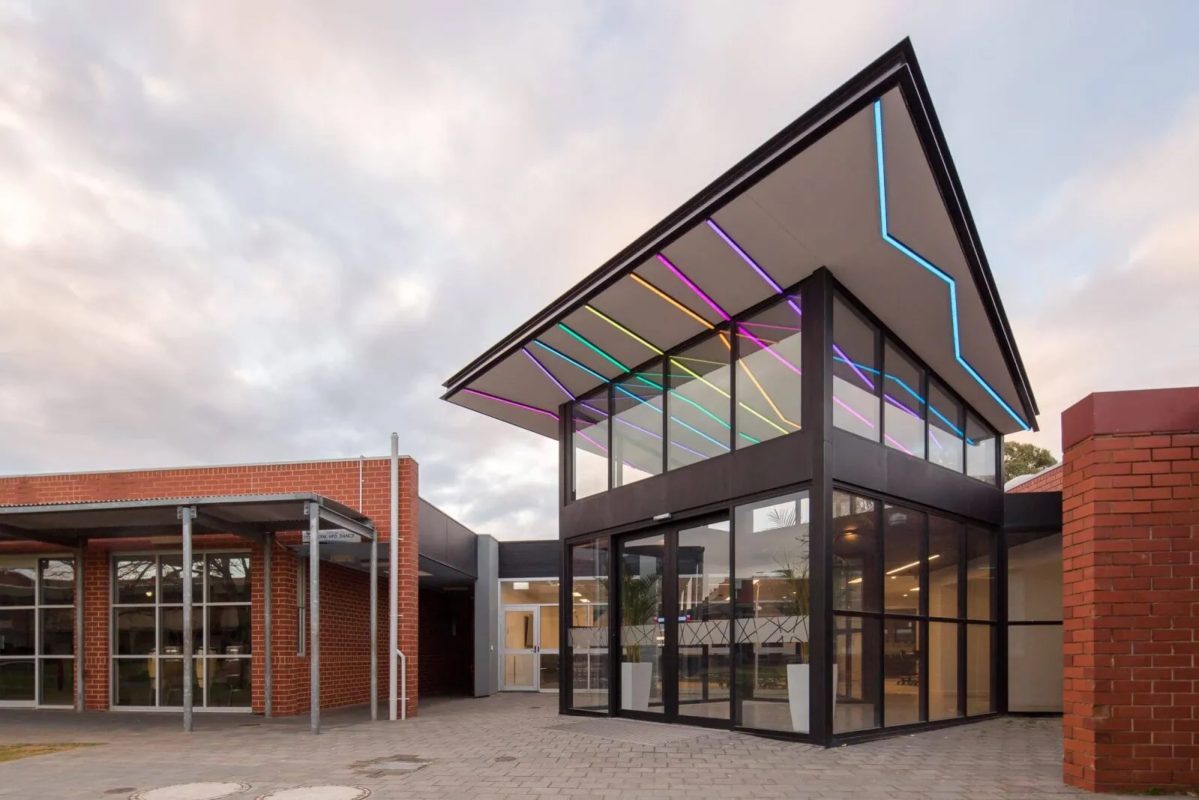

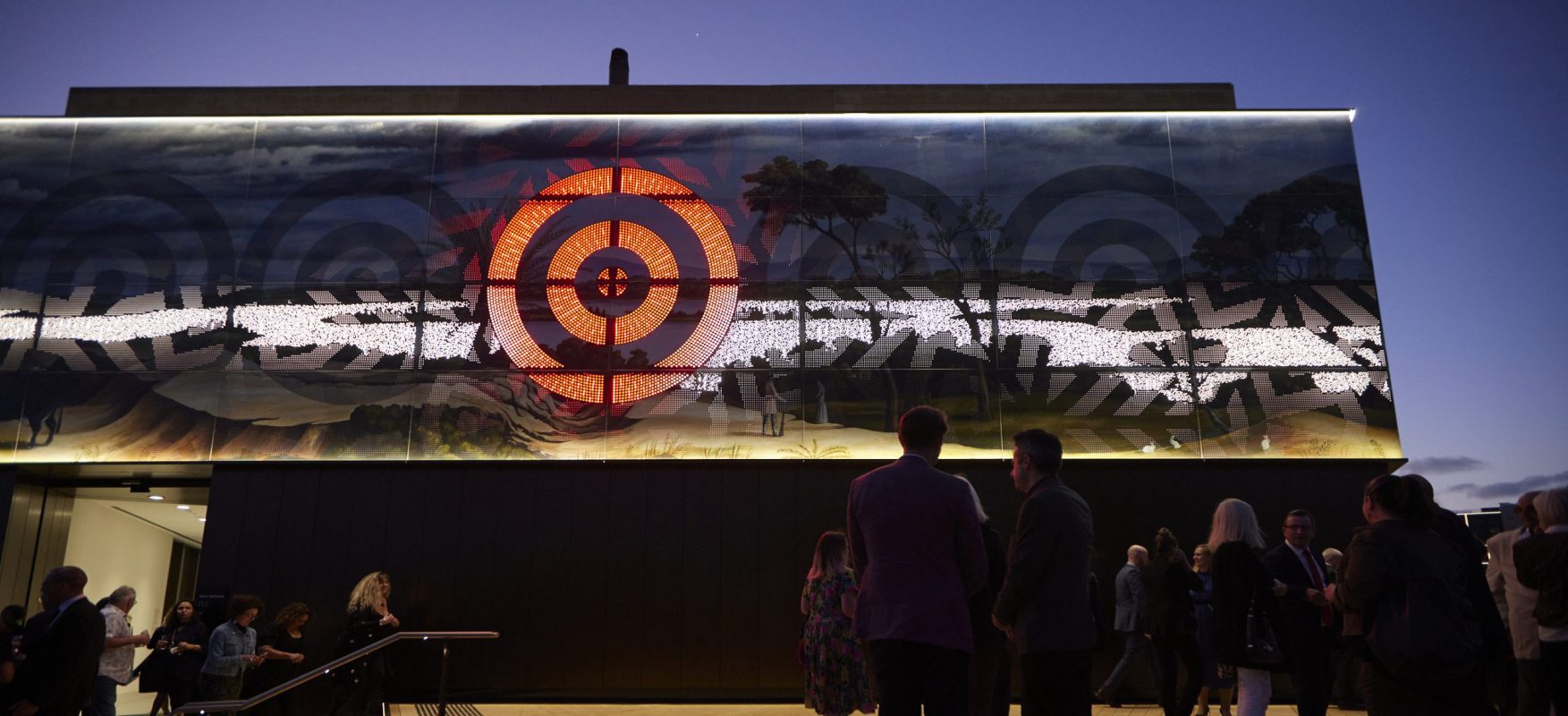

Designed and manufactured in Australia, the LDD series has been deployed as the critical driveline in many iconic projects locally and internationally.

Datasheet

Specifications

ControlDMX, RDM
Control TypeDual Channel, Variable White, RGB, RGBW
Channels2, 3, 4
MountingDIN Mount, Direct Fix via screws
Build MaterialHigh Temp ABS
Max Dimming Level100%
Min Dimming Level0%
DMX ConnectivityRJ45 (CAT5)
DMX Load0.125 Standard Devices
Drive TypeConstant Voltage
Power120W, 240W, 360W, 480W
Input Voltage12 – 36VDC
Output Current5A per Channel
Output TypeCommon Anode PWM
Protection8A Fuse
PWM Frequency244Hz, 750Hz, 1250Hz, 1800Hz
Load ConnectivityScrew Terminals
IP RatingIP20
Length151mm
Width69mm
Height32mm
Weight120g
