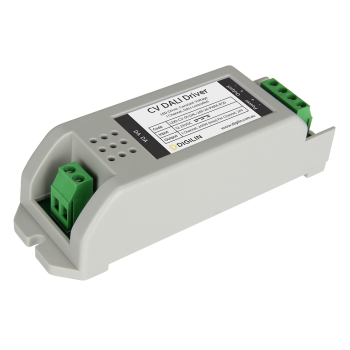

CV DALI Driver

CV DALI Driver

Designed for precision control of constant voltage LED systems

Product Code: LDD-CV-DAL Categories: , , , Tags: , , , , ,

DALI receivers with PWM driven outputs for controlling constant voltage LED systems. The PWM output makes use of Digilin’s special smoothed PWM transitions software making variations in light output almost imperceptible even at low levels. LDALI is an ideal solution for integrating constant voltage LED systems into a DALI lighting control system, providing full dimming control. Available in single channel, tuneable white (DT8) and 3 channel (RGB) versions.

Australian designed and manufactured, an ultra reliable LED driver suitable for a wide range of control applications.

Clear
Datasheet

Specifications

Control DALI
Control Type Single Variable White RGB
Device Type DT6 DT8 DT6
Power48W, 144W, 240W
Drive TypeConstant Voltage
Input Voltage12 – 24VDC
Output Voltage12 – 24VDC
Output Current2A per Channel, 10A Per Channel
Output TypeCommon Anode PWM
Max Dimming Level100%
Min Dimming Level0.1%
PWM Frequency488Hz
Operating Temp-20°C to +40°C
Build MaterialHigh Temp ABS
MountingDIN Mount, Direct Fix via screws, Surface Mount
IP RatingIP20
Length120.6mm
Width39mm
Height32mm
Weight65g
Class I/II/IIIIII
