ColourTouch

ColourTouch

Pre-programmed DMX controller

Product Code: CTLDMX-CTH Categories: , , Tags: , , ,

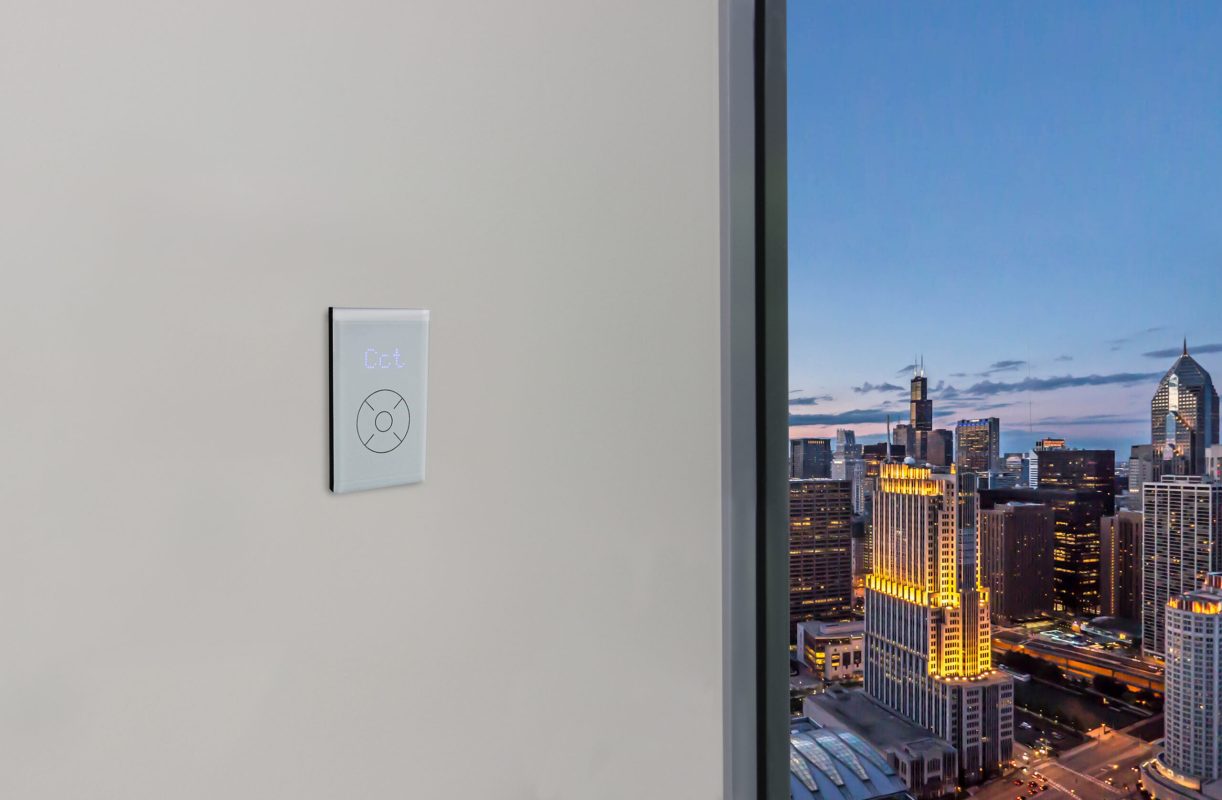

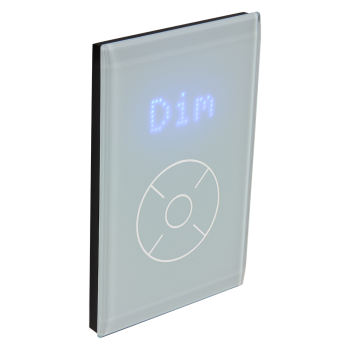

The ColourTouch is a sophisticated, highly versatile DMX control interface designed and manufactured in Australia. Featuring a display screen and five touch sensitive buttons, the ColourTouch’s user- interface is extremely intuitive and simple to use, enabling users to take full advantage of DMX control capability with zero technical skills.

The left and right buttons cycle between functions – colour temperature, dimming and show selection, while the top and bottom buttons alter each particular function’s values, allowing users to set colour temperature in 100K intervals, dim from 0.4-100% and select from hundreds of preset colours and show sequences. The centre button turns the control panel on and off.

Customised sequences can also be uploaded to the ColourTouch’s onboard memory chip, adding to the hundreds of others that come preprogrammed with the device, allowing it to be adapted to any installation and design requirement.

Clear
Datasheet

Specifications

Channels1-10, 2, 3, 4
ControlDMX
Control TypeRGB+W, UpDown, Zone dimming, Variable White, RGB, RGBW
Finish Colour,
Operation Via5 touch buttons
MountingWall Plate
Build MaterialPolymer
Dimming Range0.4-100%
DMX Start Address1 (adjustable)
DMX Load0.25 Standard Devices

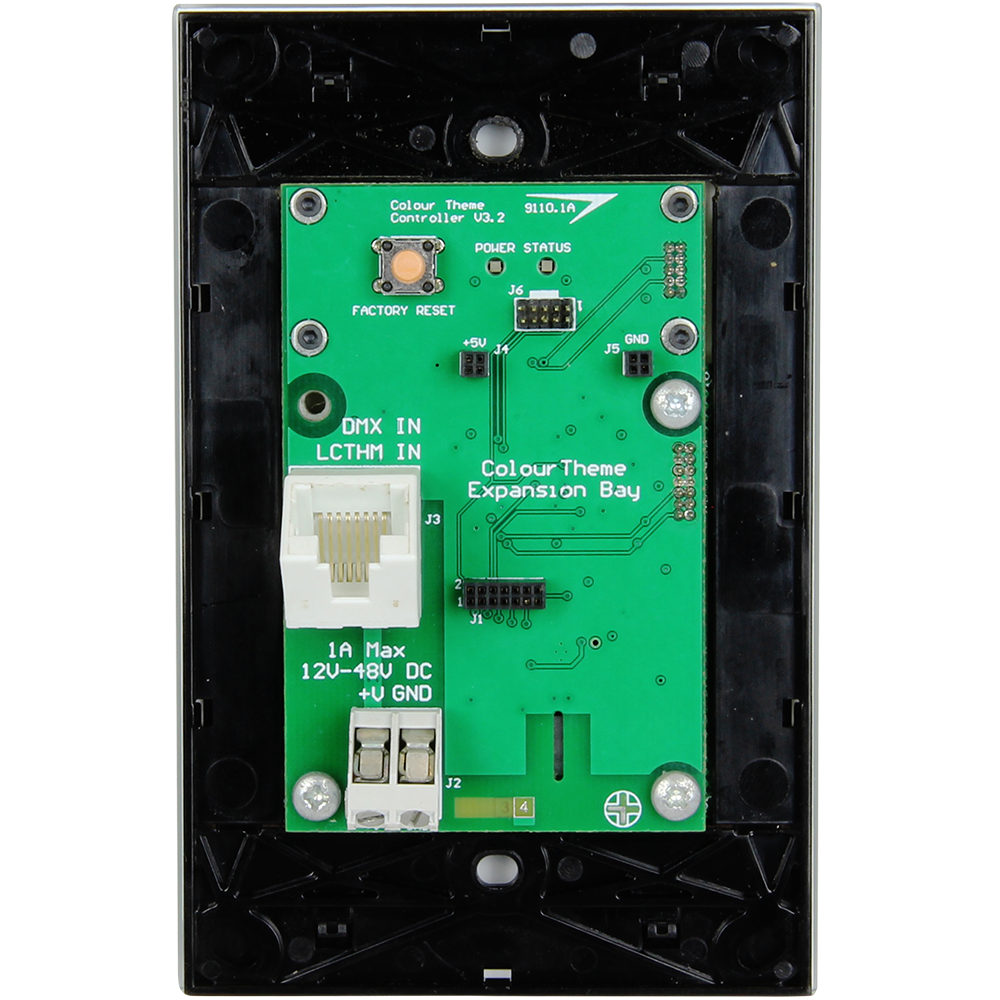

DMX ConnectivityRJ45 (CAT5)
Input Voltage12-48VDC
Input Current25mA
IP RatingIP20
Height116mm
Width75mm
Depth32.5mm
Weight100g
