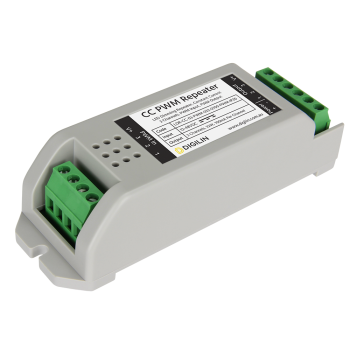

CC PWM Repeater

CC PWM Repeater

Cost effective expansion of LED dimming systems

Product Code: LDR-CC-PWM Categories: , , Tags: , , , , ,

Cost effective expansion of LED dimming systems. PWM repeaters allow limitless expansion of LED systems without the need for additional dimming protocols or signal interpretation. The result is precisely consistent dimming levels across large LED loads from a single control source. The repeaters use the existing PWM signal provided by a DMX, DALI or analogue receiver and repeat via outputs capable of large LED loads. This approach can dramatically reduce drive systems costs on large LED dimming projects, while ensuring perfect dimming across the entire system.

Clear
Datasheet

Specifications

Version 3 Channel 350mA 3 Channel 550mA 3 Channel 700mA
Channels 3 3 3
Output current 350mA per Channel 550mA per Channel 700mA per Channel
Output TypeLow Side Switched PWM
Max Output VoltageInput Voltage minus 2V
Min Output Voltage10VDC
Input Voltage12-48VDC
Input CommunicationsLow Side Switched PWM
PWM Input Current Draw (max)20mA
Operating Temp-20°C to +40°C
IP RatingIP20
Length120.6mm
Width39mm
Height32mm
Weight90g
